Product Parameters
Model Number: OF07ZAT
Pipe Diameter: G1/4
Water Pressure Resistance: ≤1.0MPa
Operating Voltage Range: DC 3.5~24V
Insulation Resistance: >100MΩ
Accuracy: ±1% (at 18~300 L/H)
Flow Pulse Characteristic: F=(8.5*Q)±2% (F: Frequency in Hz; Q: Flow in L/min). Equals 510 pulses per liter.
Output High Level: >DC 4.7V (Input Voltage: DC 5V)
Output Low Level: <DC 0.5V (Input Voltage: DC 5V)
Output Duty Cycle: 50%±10%
Thread Length: 10mm
Thread Outer Diameter: 13mm

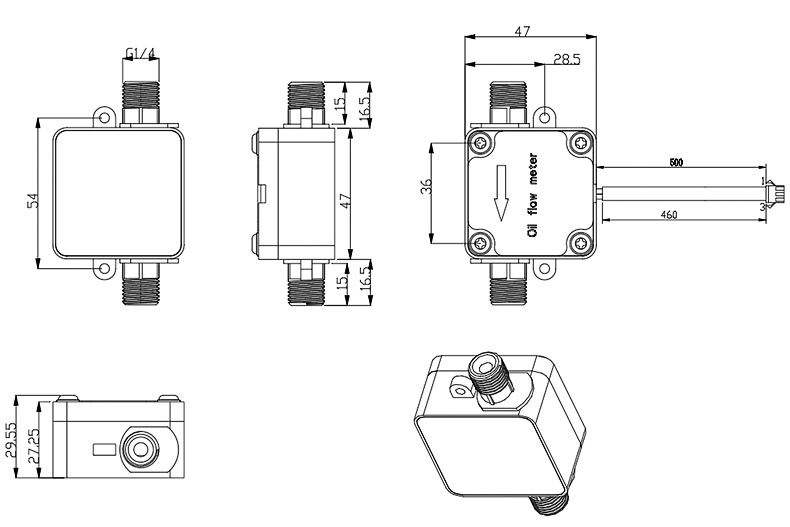

Key Dimensions (Unit: mm)
Overall Length: 54
Width: 47
Height: 47
Installation Thread: G1/4
Application Range
Water flow sensors are mainly used in the following fields and equipment:
Gas water heaters, Electric water heaters, Washing machines, Wall-hung boilers,
Water vending machines, Electromagnetic water heaters, Water control (integrated) machines,
Water control devices,Heat pump hot water projects, One-card management systems,
Campus card water vending systems, Self-service water vending (selling) machines,
Water treatment equipment, Water and medicine distribution equipment, Cooling systems,
Circulation systems, Intelligent mechanical equipment, Heating equipment, Instruments and meters,
Pharmaceutical (preparation) equipment, Smart water meters, IC water meters.
