| Product Name | YF-S201 Water Flow Sensor |
|---|---|

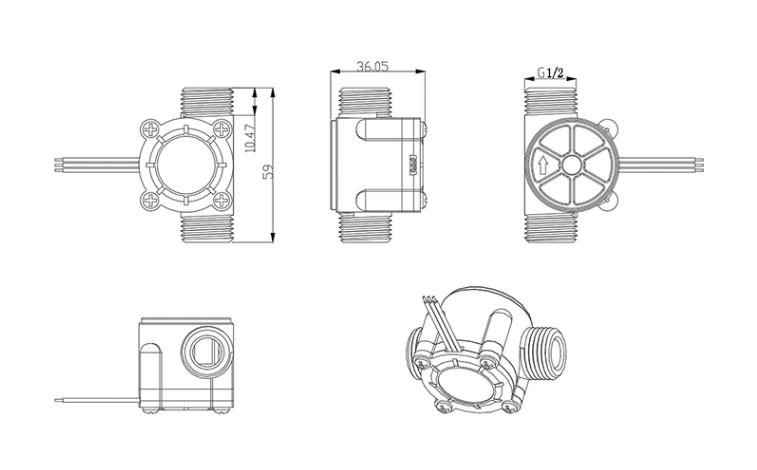

| Pipe Joint Size | G½" Thread DN15 OD≈20.5mm |
| Operating Voltage Range | DC3.5～24V |
| Inner Diameter | 10.9mm |
| Material | PA66 Nylon and Fibre Glass |
| Water Pressure Resistance | ≤1.0mpa |
| Output Pulse High Level | >DC 4.5 V (Input Voltage DC 5 V) |
| Output Pulse Low Level | ＜DC 0.5 V (Input Voltage DC 5 V) |
| Insulation Resistance | >100MΩ |
| Flow Range | 1-30L/min3% |
| Flow Pulse Characteristics | F(Hz)=[7.5*Q]±3% which means 450 pulses per liter of water |
Application Range
Water flow sensors are mainly used in the following fields and equipment:
Gas water heaters, Electric water heaters, Washing machines, Wall-hung boilers,
Water vending machines, Electromagnetic water heaters, Water control (integrated) machines,
Water control devices,Heat pump hot water projects, One-card management systems,
Campus card water vending systems, Self-service water vending (selling) machines,
Water treatment equipment, Water and medicine distribution equipment, Cooling systems,
Circulation systems, Intelligent mechanical equipment, Heating equipment, Instruments and meters,
Pharmaceutical (preparation) equipment, Smart water meters, IC water meters.
